10,000,000 Cycle Target
Test validation focuses on long-cycle performance for a shock absorber base valve spring program.
This page highlights a fatigue validation case and the inspection logic used to review height loss, force loss, and fracture risk after cycling.
Force Loss Tracking
Height and force variation after cycling are monitored as part of the result review.
Compression Test Support
Electronic compression measurement is used alongside fatigue testing for validation records.

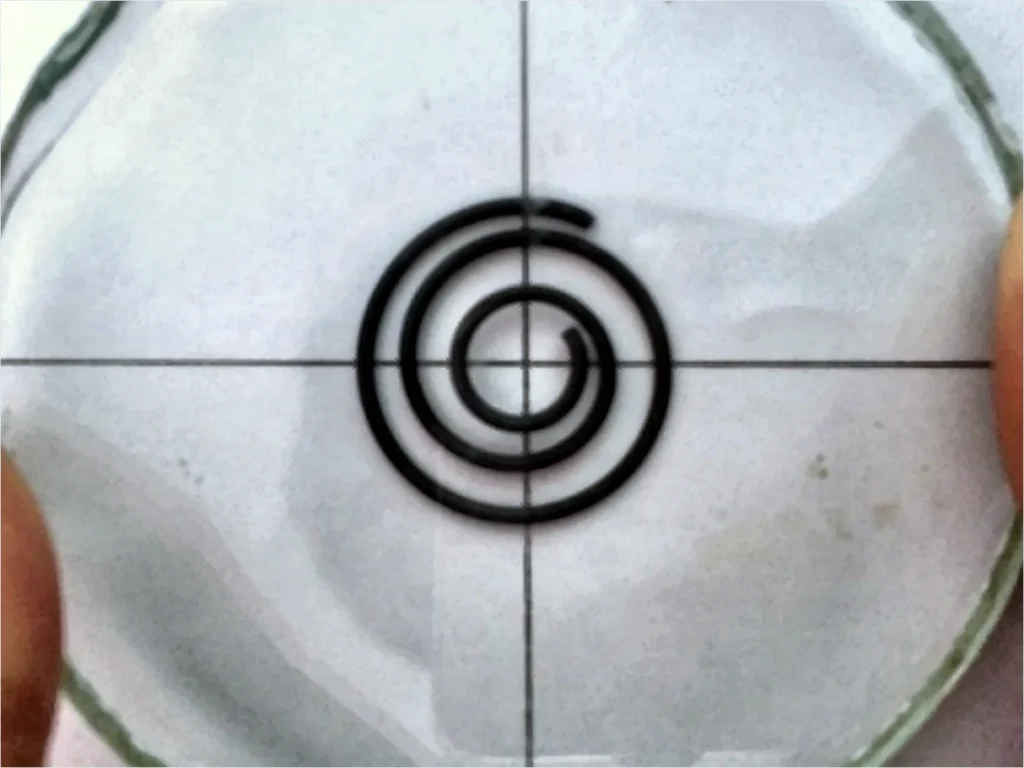

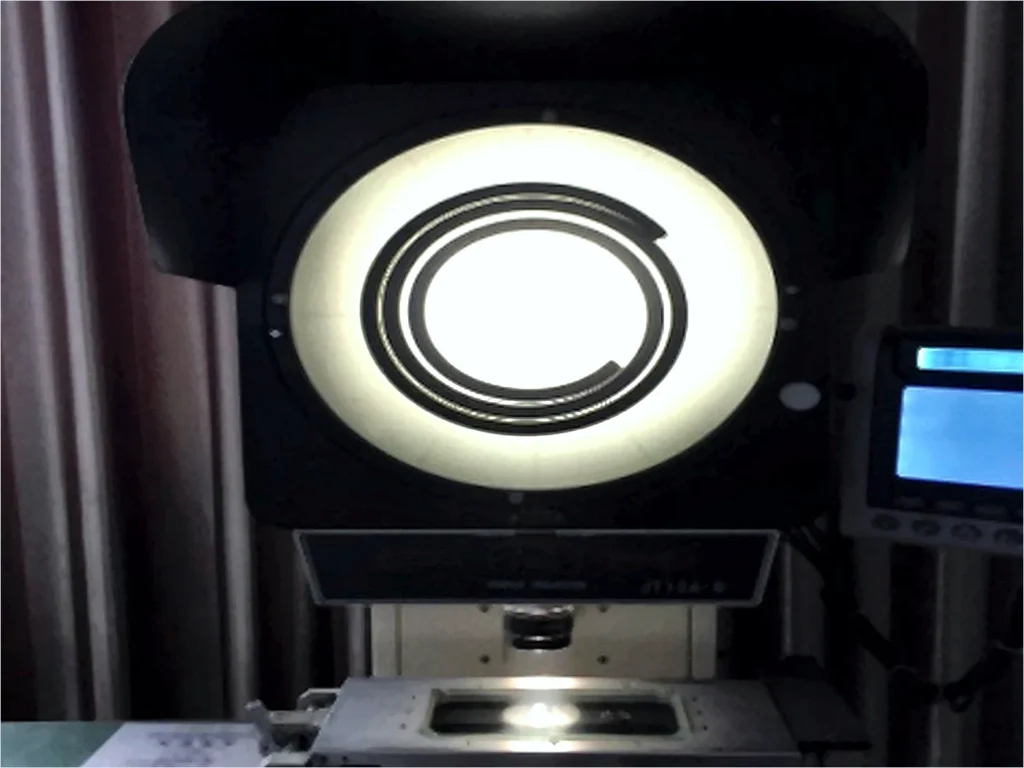

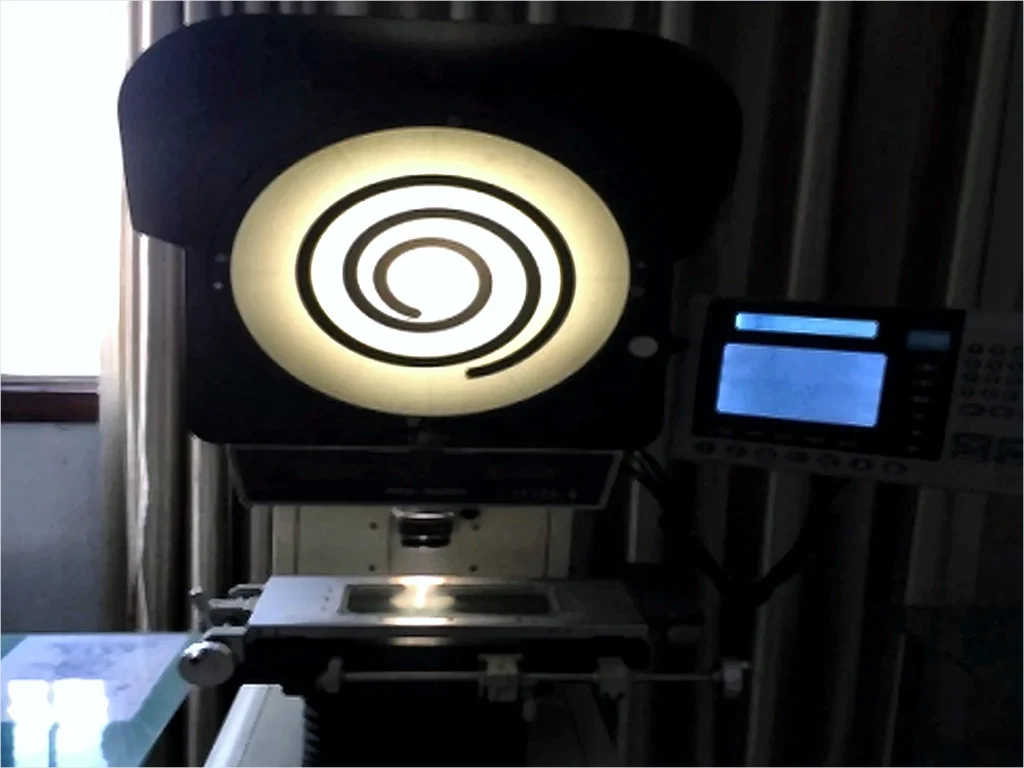

Profile Verification
Projection and dimensional tools support geometry confirmation before and after test cycles.
fatigue-test-case
Test Scenario
- Shock absorber base valve spring fatigue testing
- 10,000,000 cycle validation target
- Electronic compression testing machine
- Fatigue testing machine
- Profile projector
fatigue-test-case
Result Summary
The reported test case focuses on maintaining fatigue life without fracture while tracking height loss and force loss data across Group A and Group B after cycling.
Fatigue Test Visuals
Test Result Snapshots
