Product Description

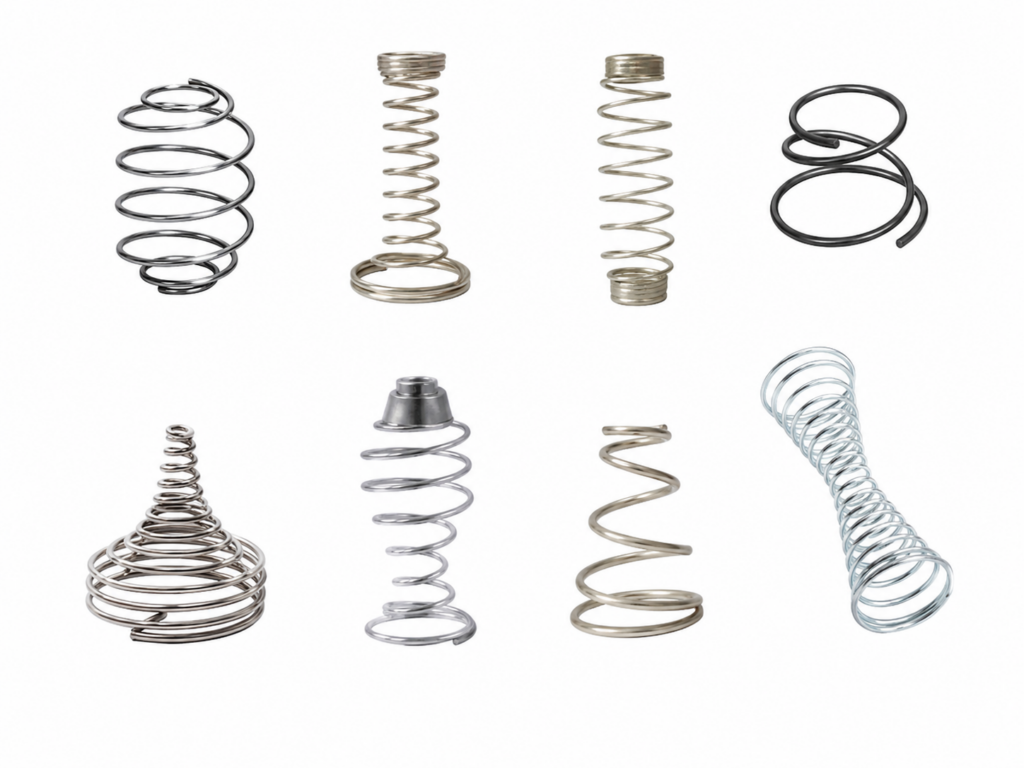

What are conical springs?
Conical springs, also known as tapered or cone springs, are compression springs with coil diameters that gradually change along their height. Their tapered geometry provides compact solid height, stable positioning, and a progressive load response for space-limited assemblies.
Working Principle
How this spring type works.
Under axial compression, the larger-diameter coils begin to deflect before the smaller coils. With suitable pitch and diameter design, the coils can nest partly or fully inside one another, reducing solid height while producing a controlled progressive spring rate.
Key Features
Design characteristics.
- Compact solid height through nesting coil geometry
- Progressive or application-tuned spring rate
- Improved lateral stability compared with slender cylindrical springs
- Custom top and bottom diameters, height, pitch, material, and end forms
Common Applications
Typical use cases.
- Battery contacts and electrical assemblies
- Automotive switches, valves, and seating mechanisms
- Vibration isolation and compact return mechanisms
- Appliances, dispensing equipment, toys, and industrial controls
Custom Spring Review
Need this spring type matched to your assembly?
Send the drawing, target force or torque, working travel, material preference, annual quantity, and validation requirements for a production-oriented review.
