Product Description

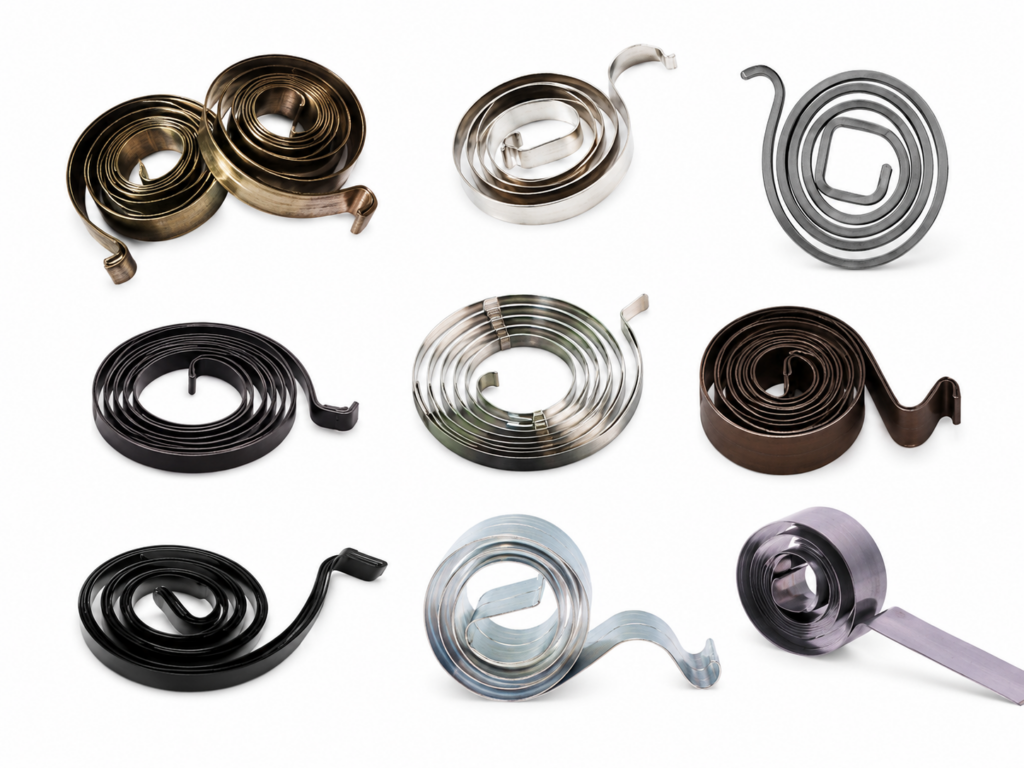

What are spiral springs?
Spiral springs, also called clock springs or power springs, are made from flat strip material wound into a compact spiral. They store rotational energy and deliver torque through controlled winding and unwinding around a central arbor.
Working Principle
How this spring type works.
One end of the strip is fixed to an arbor and the other to a housing or driven component. Rotation tightens or relaxes the spiral, creating bending stress along the strip. The stored energy then produces a restoring torque over the designed angular travel.
Key Features
Design characteristics.
- High rotational energy storage in a compact, flat envelope
- Controlled torque over multiple turns of angular travel
- Custom strip width, thickness, coil diameter, and end hooks
- Available with preset, prestressed, enclosed, and application-specific configurations
Common Applications
Typical use cases.
- Seat-belt retractors, cable reels, and rewind mechanisms
- Clocks, timers, gauges, and measuring instruments
- Window regulators, starters, and compact drive assemblies
- Toys, appliances, tools, and industrial return mechanisms
Custom Spring Review
Need this spring type matched to your assembly?
Send the drawing, target force or torque, working travel, material preference, annual quantity, and validation requirements for a production-oriented review.
